Stainless Steel 317L Plates, Sheets & Coils

ASTM A240 TP317L Stainless Steel Plates & Sheets Stockist, Manufacturer
UNS S31703 Stainless Steel 317L Plates, SS 317L Plates Suppliers.
Stainless Steel 317L Chequered Plates, Stainless Steel Coils, SS Rings.
Stainless Steel Perforated Sheet, 317L SS Strips, SS 317L Sheets, Stainless Steel 317L Sheets, Stainless Steel 317L Foils Dealer in India.

introduction

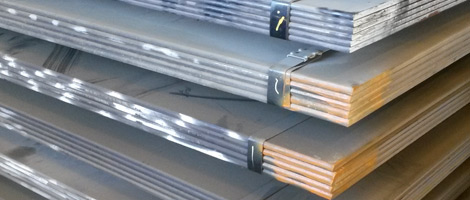

SS 317l stainless steel Pipes and TubesDinesh Tube (India)  is one of the leading Manufacturer, Exporter and Supplier of High-Quality ASTM A240 TP 317L Stainless Steel Plates and Sheets. We provide a wide range of SS 317L Plates and Sheets in Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange). Our range comprises of SS 317L Plates and Sheets. Available in different dimensions & grades, these stainless steel Chequered Plates and Sheets are widely used in different industries like power, engineering, construction and many more. We also offer competitive range of ss 317L Plates and Sheets in clients requirement.

Enquire Now

Key Specifications Of SS 317L Plates & Sheetss:

Specifications :
Standards : ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
STANDARD WERKSTOFF NR. UNS JIS AFNOR BS GOST EN
SS 317L 1.4438 S31703

Chemical Composition Of Stainless Steel 317L plates & Sheets (UNS S31703 Plates & Sheets):

Grade C Mn Si P S Cr Mo Ni N
317L 0.035 max 2 max 1 max 0.040 max 0.03 max 18 – 20 3 – 4 11 – 15

Mechanical properties Of SS 317L plates & Sheets (UNS S31703 Plates & Sheets):

Density 8.0 g/cm3
Melting Point 1454 °C (2650 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %
